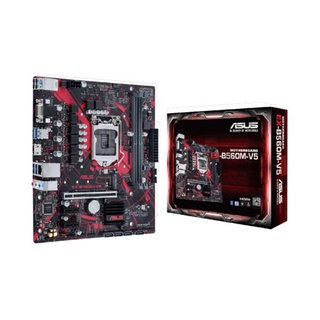

Mainboard Asus B560M-V5 (Intel B560, Socket 1200, m-ATX, 2 khe Ram DDR4)

Giới thiệu Mainboard Asus B560M-V5 (Intel B560, Socket 1200, m-ATX, 2 khe Ram DDR4)

Thông tin sản phẩm
Socket: LGA1200 hỗ trợ CPU intel thế hệ 10
Kích thước: micro-ATX
Khe cắm RAM: 2 khe (Tối đa 64GB)
Khe cắm mở rộng: 1 x PCIe 4.0/3.0 x16 slot
Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports
Thông số kỹ thuật
Sản phẩm: Mainboard Asus B560M-V5
Tên Hãng: ASUS
Model: EX-B560M-V5
CPU hỗ trợ: Intel
Chipset: B560
RAM hỗ trợ
Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/
2400/2133 MHz Non-ECC, Un-buffered memory
Khe cắm mở rộng
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset2 x PCIe 3.0 x1 slots
Ổ cứng hỗ trợ: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Cổng kết nối (Internal)
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
Cổng kết nối (Back Panel)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMITM port
3 x Audio jacks
1 x Realtek 1Gb Ethernet port
1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Kích cỡ
microATX
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
