Giới thiệu Mạch Giao Diện Cho Arduino Or Raspberry Pi Shield Ulefone

It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs
Adjustable frequency PWM up to about 1.6 KHz;Configurable push-pull or open-drain outputManufacturer
12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
An I2C-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
1.Output enable pin to quickly disable all the outputs
2. Terminal block for power input (or you can use the 0.1 inch breakouts on the side)
3. Reverse polarity protection on the terminal block input
4. Green power-good LED
5. 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1 inch so you can only stack 4 next to each other on 0.1 inch header
6. "Chain-able" design
7. A spot to place a big on the V+ line
8. 330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
9. Solder jumpers for the 6 address select pins
colour: blue
Material: plastic
size: 60*25mm
Package Contents:

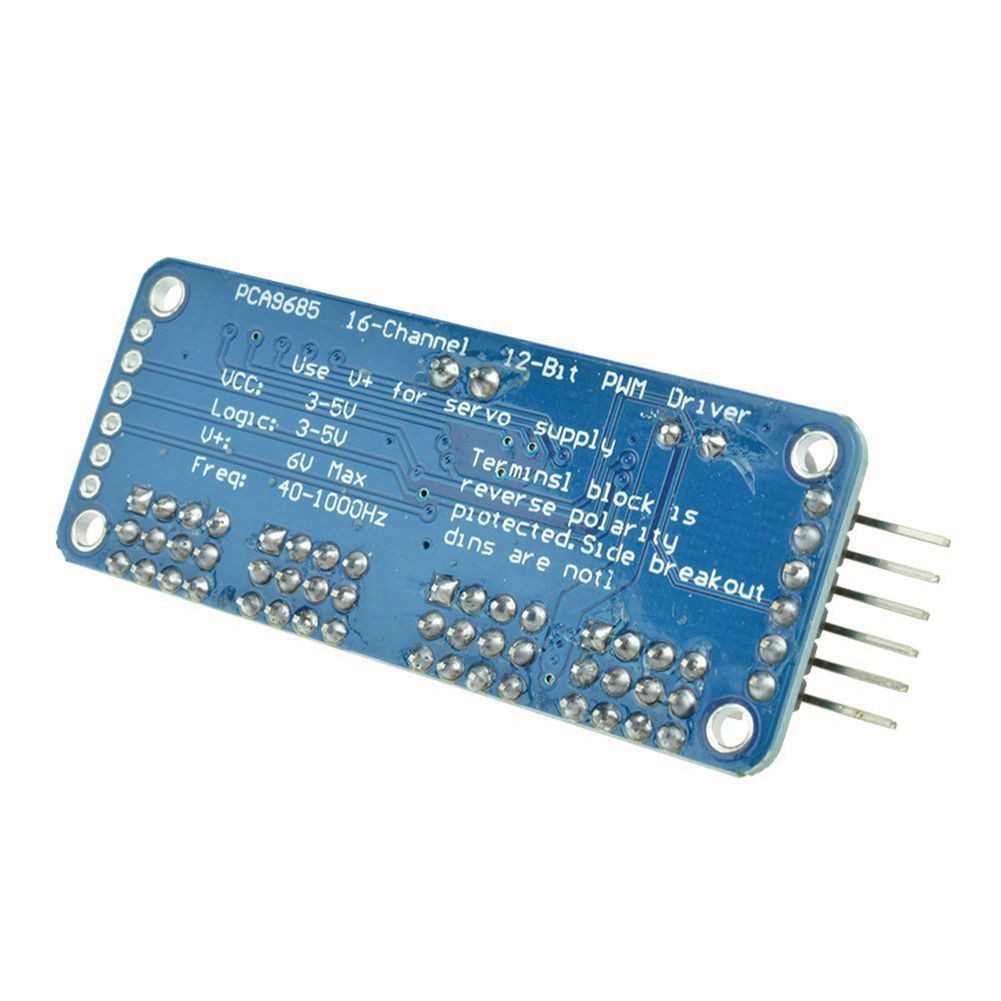

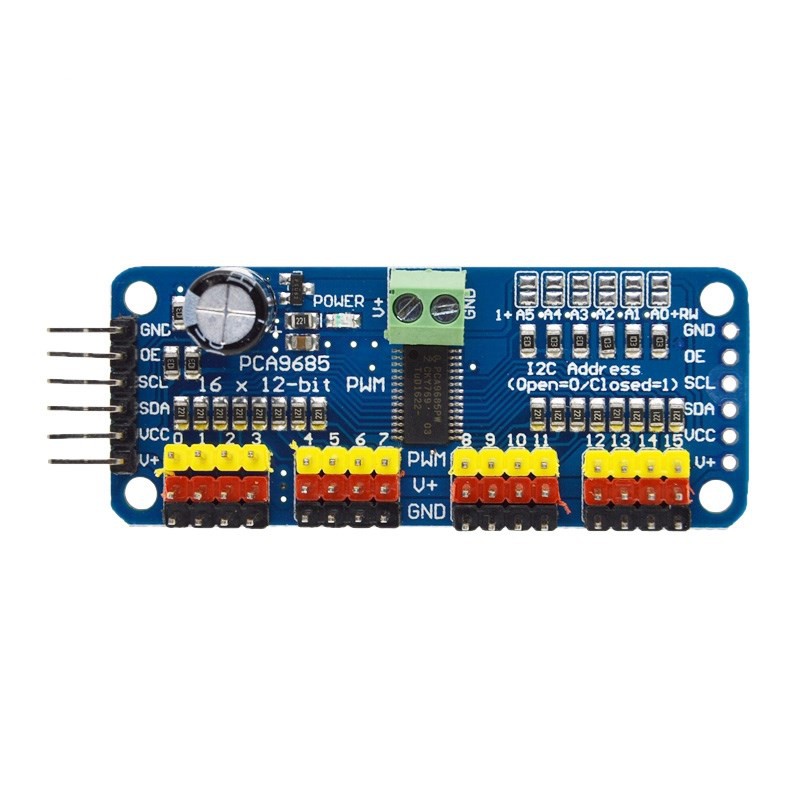

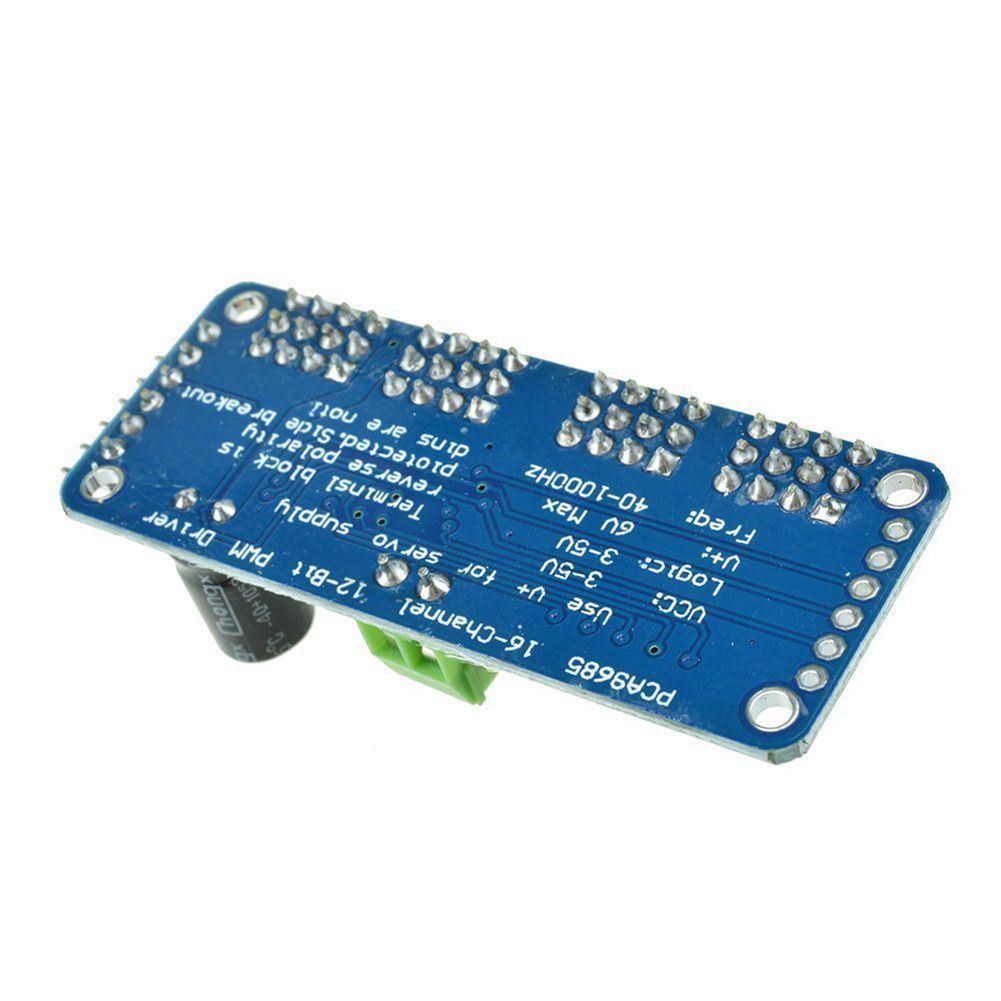

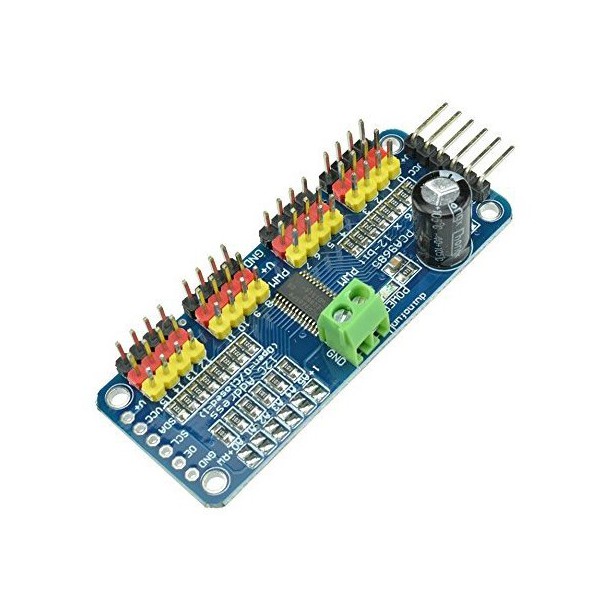

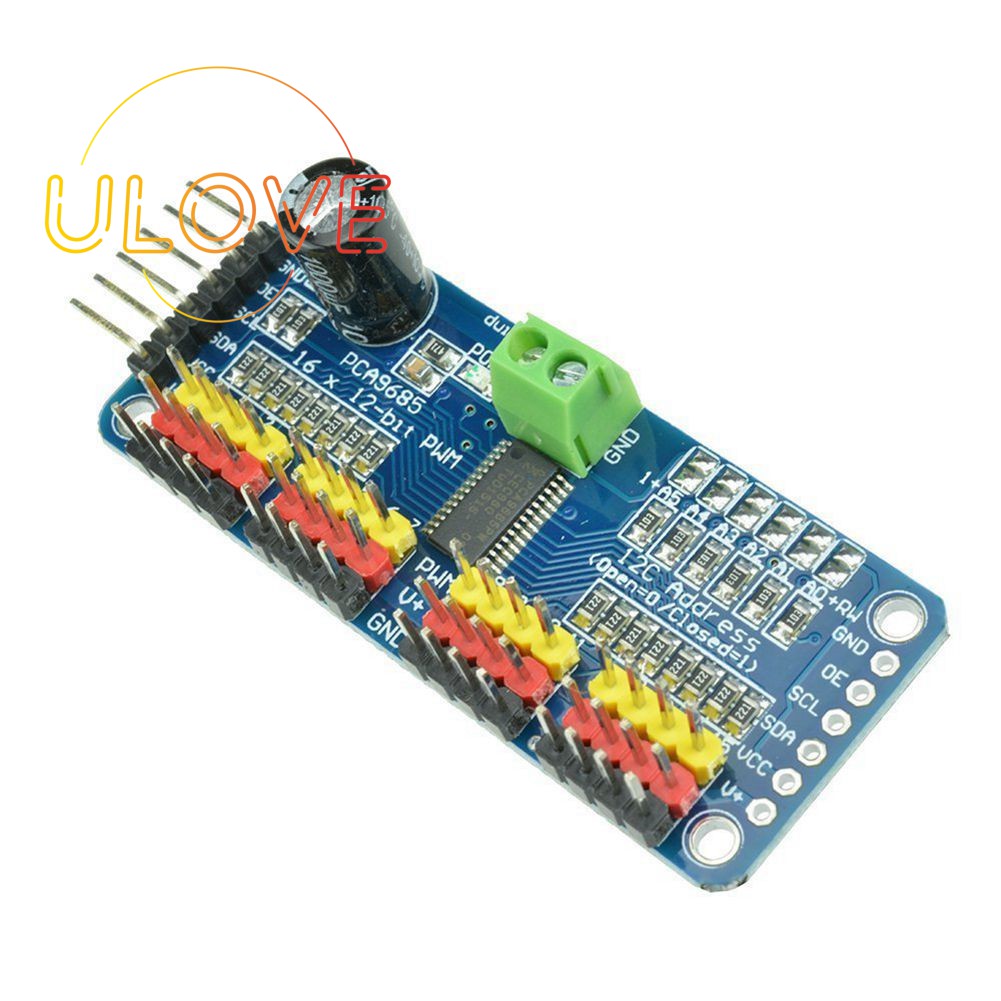

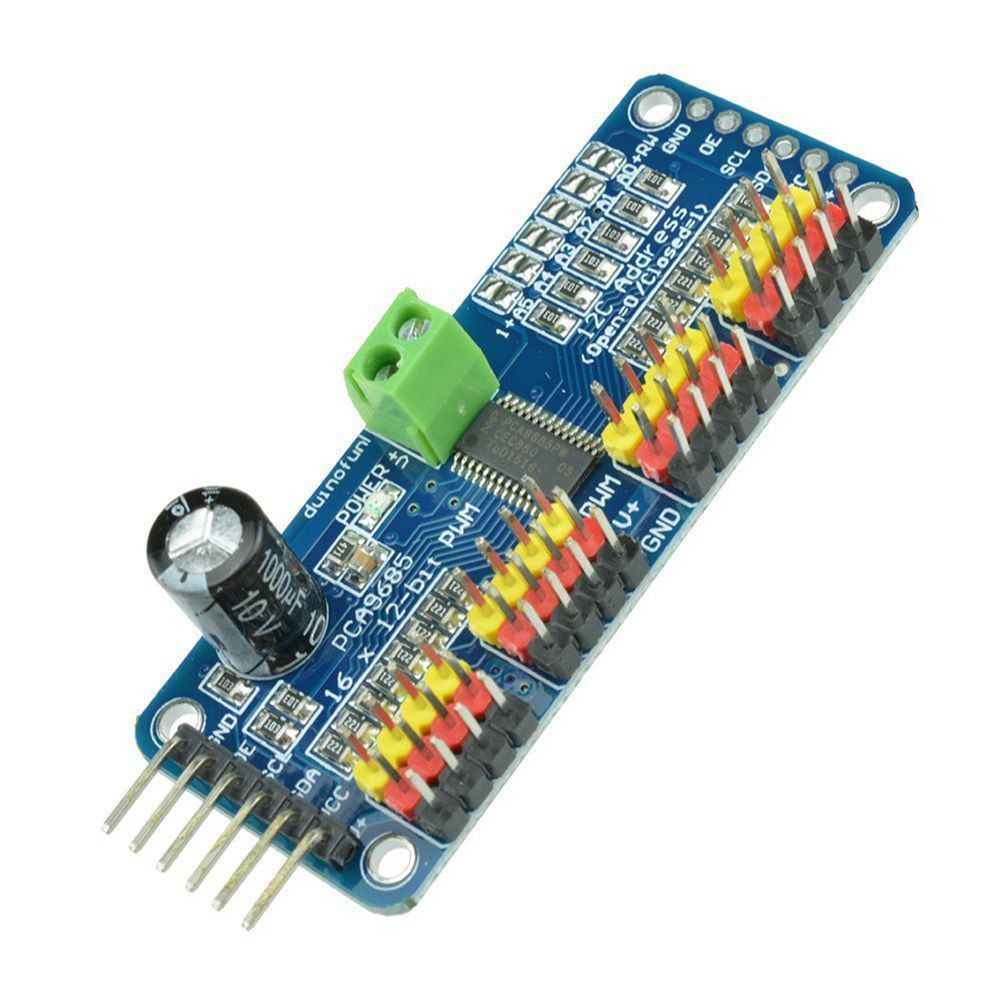

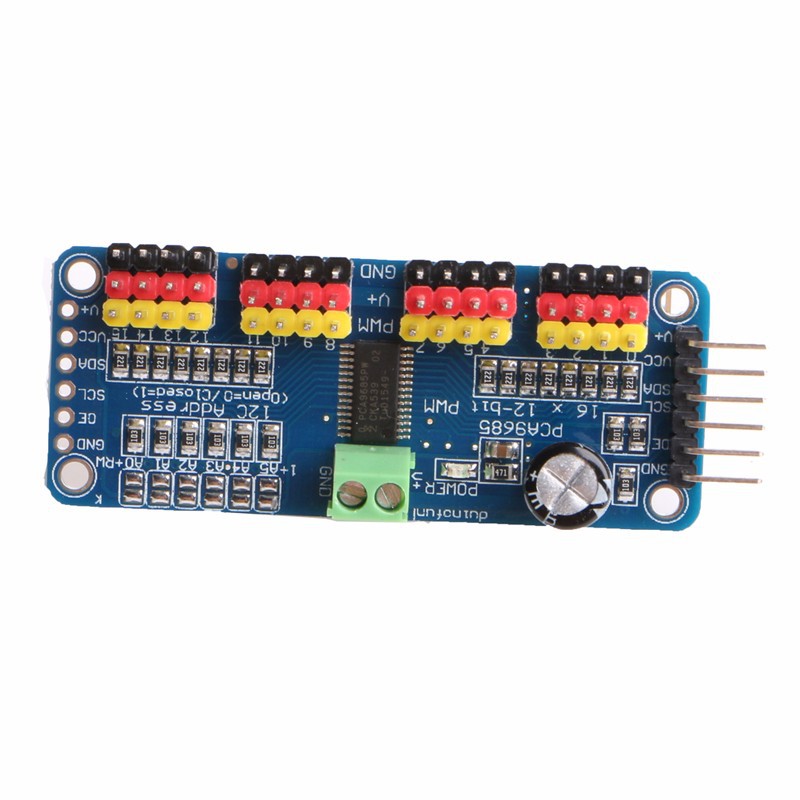

1 x PCA9685 16-Channel 12-bit PWM Servo Motor Driver I2C ule For Arduino Robot
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
